Product Summary

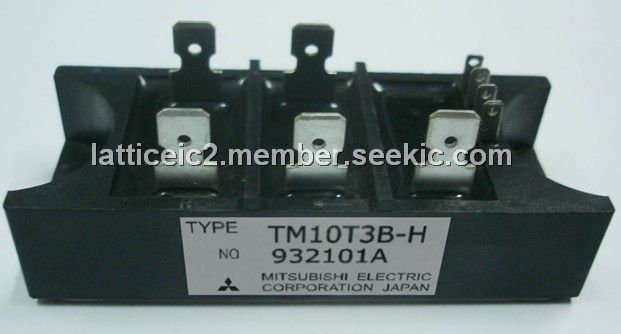

The TM10T3B-H is a mitsubishi thyristor module. It can be used for the DC motor control, NC equipment, AC motor control, contactless switches, electric furnace temperature control, light dimmers.

Parametrics

TM10T3B-H absolute maximum ratings TM10T3B-H: (1)VRRM, Repetitive peak reverse voltage: 400V M, 800V H; (2)VRSM, Non-repetitive peak reverse voltage: 480V M, 960V H; (3)VR (DC), DC reverse voltage:320V M, 640V H; (4)VDRM, Repetitive peak off-state voltage:400V M, 800V H; (5)VDSM, Non-repetitive peak off-state voltage: 480V M, 960V H; (6)VD (DC), DC off-state voltage: 320V M, 640V H.

Features

TM10T3B-H features: (1)IO DC output current: 20A; (2)VRRM Repetitive peak reverse voltage: 400/800V; (3)VDRM Repetitive peak off-state voltage:400/800V; (4)3 Phase Mix Bridge; (5)Insulated Type; (6)UL Recognized: Yellow Card No. E80276 (N); File No. E80271.

Diagrams

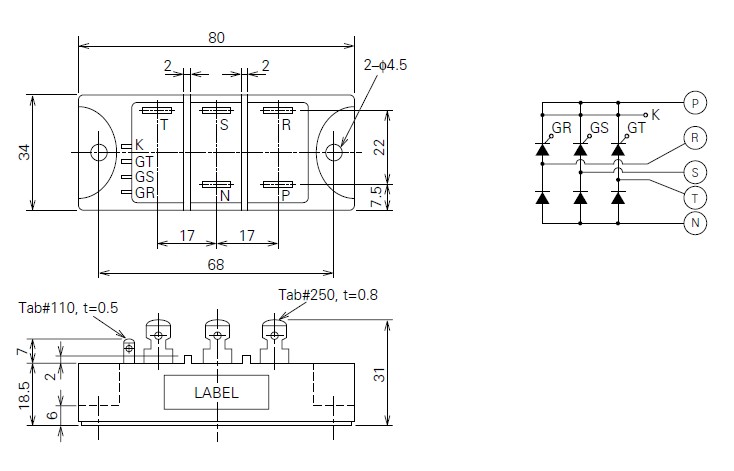

TM10T3B-H circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TM10T3B-H
TM10T3B-H
Other

Data Sheet
Negotiable
