Product Summary

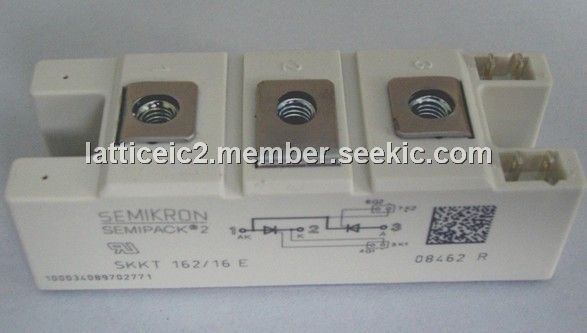

The SKKT162/16E is a thyristor/diode module. Applications include: DC motor control; temperature control; professional light dimming.
Parametrics
SKKT162/16E absolute maximum ratings: (1)On the conditions of sin. 180; Tc=85(100)℃, ITAV: 156(110)A; (2)On the conditions of P3/180F; Ta=35℃; B2/B6: 190/230A; (3)On the conditions of P3/180F; Ta=35℃; W1/W3, IRMS: 265/3*185A; (4)On the conditions of Tvj=25℃, IT=500A, VT: max. 1.6V; (5)On the conditions of Tvj=125℃, VT(TO): max. 0.85V; (6)On the conditions of Tvj=125℃, rT: max. 1.5mΩ; (7)On the conditions of Tvj=125℃; VRD=VRRM; VDD=VDRM, IDD; IRD: max. 40mA.
Features
SKKT162/16E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E63532.
Diagrams
 |
