Product Summary

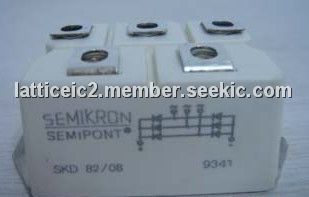

The SKD82/08 is a power bridge rectifier. The applications of the SKD82/08 include Three phase rectifiers foe power supplies, Input rectifiers for variable frequency drives, Rectifiers for DC motor field supplies, Battery charger rectifiers.
Parametrics
SKD82/08 absolute maximum ratings: (1)On the conditions of Tc=110℃, ID: 80A; (2)On the conditions of Ta=45℃, isolated, ID: 12A; (3)On the conditions of Ta=45℃, chassis, ID: 12A; (4)On the conditions of Ta=45℃,P1A/120(P1A/200), ID: 54(63)A; (5)On the conditions of Tvj=25℃, 10ms, IFSM: 750A; On the conditions of Tvj=150℃, 10ms, IFSM: 640A; (6)On the conditions of Tvj=25℃, 8.3~10ms, i2t: 2800A2s; On the conditions of Tvj=150℃, 8.3~10ms, i2t: 2000A2s.
Features
SKD82/08 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800V; (4)High surge current; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognised file no.E63532.
Diagrams
