Product Summary
The PM300DSA060 is an intelligent power module. The Mitsubishi Intelligent Power Module is isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free wheel-diode power devices. The applications of the PM50RL1A120 include Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM300DSA060 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Case Operating Temperature, TC -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 1.47 to 1.96 N · m; (5)Mounting Torque, M5 Main Terminal Screws: 1.47 to 1.96 N · m; (6)Module Weight (Typical): 430 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part), VCC(prot.): 400 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
PM300DSA060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic, Short Circuit; Over Current; Over Temperature; Under Voltage.

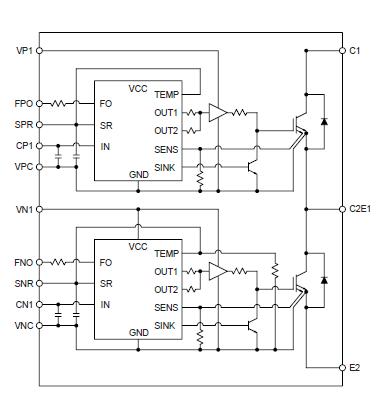

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM300DSA060 |
|
MOD IPM DUAL 600V 300A |
Data Sheet |
Negotiable |
|
||||||
