Product Summary

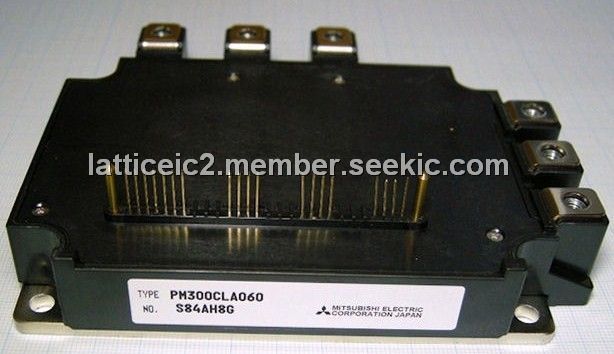

The PM300CLA060 is an intelligent power module. The applications of the PM300CLA060 include General purpose inverter, servo drives and other motor controls.
Parametrics
PM300CLA060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600V; (2)Collector Current, ±IC: 300A; (3)Collector Current (Peak), ±ICP: 600A; (4)Collector Dissipation, PC: 801W; (5)Junction Temperature, Tj: -20 to +150℃.
Features
PM300CLA060 features: (1)Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process. For example, typical Vce(sat)=1.5V @Tj=125℃; (2)I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM.; (3)3φ300A, 600V Current-sense IGBT type inverter; (4)Monolithic gate drive & protection logic; (5)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage (P-Fo available from upper arm devices); (6)Acoustic noise-less 30kW class inverter application

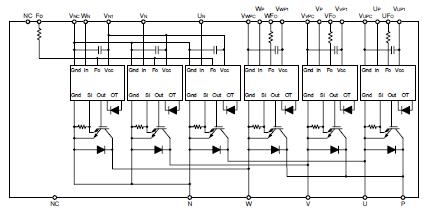

Diagrams
