Product Summary

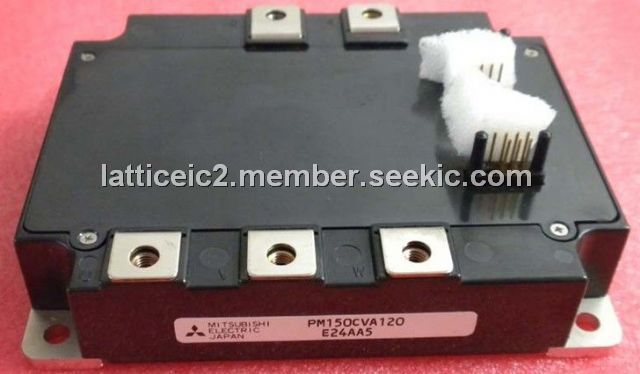

The PM150CVA120 is an intelligent power module. The applications of the PM150CVA120 include General purpose inverter, servo drives and other motor controls.
Parametrics
PM150CVA120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Collector Current TC = 25℃: 150A; (3)Collector Current (Peak) TC = 25℃:300A ; (4)Collector Dissipation TC = 25℃: 710W; (5)Junction Temperature : -20 to 150℃.
Features
PM150CVA120 features: (1)3φ150A, 1200V Current-sense IGBT for 20kHz switching; (2)Monolithic gate drive & protection logic; (3)Detection, protection & status indication circuits for overcurrent, short-circuit, over-temperature & under-voltage (P-FO available from upper leg devices); (4)Acoustic noise-less 30kW class inverter application; (5)UL Recognized.

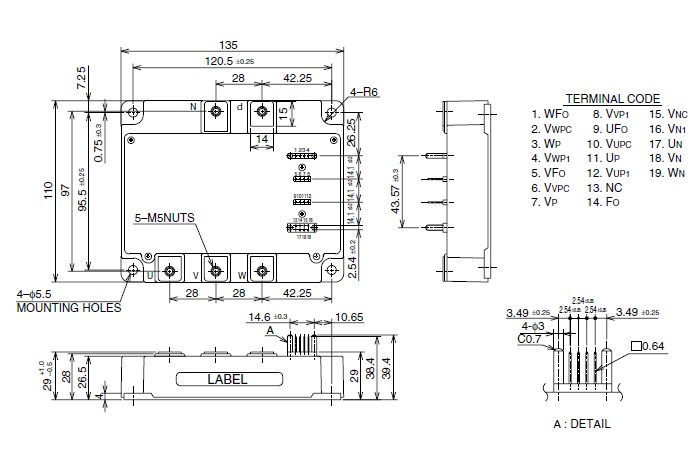

Diagrams
