Product Summary
The CM30MD1-12H is a medium power switching use flat-base type module. The applications of the CM30MD1-12H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics, UPS.
Parametrics
CM30MD1-12H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector Current, IC: 30A; ICM: 60A; (4)Emitter Current, IE: 30A; IEM: 60A; (5)Maximum collector dissipation, PC: 66W.
Features
CM30MD1-12H features: (1)IC: 30A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module, 3φ Inverter+1φ Converter; (5)UL Recognized, Yellow Card No. E80276 (N), File No. E80271.

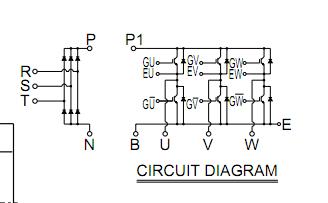

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

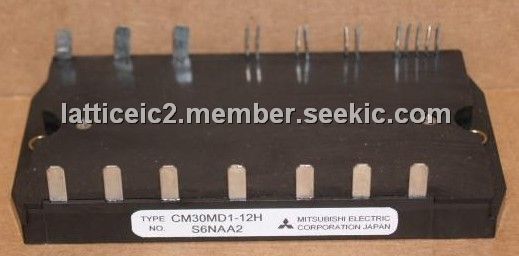

 CM30MD1-12H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
